High Efficiency 3.5km/H Mini Crawler Carrier Crawler Mini Dumper 500kg

  • 1
  • 2

Brand Name : HIGHTOP

Model Number : HT-D05

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability : 40 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

product Name : Mini Crawler Dumper

Engine : KoopKD192F

Emission : Euro5

Machine Weight : 515KG

Cooling mode : Air-cooled

Warranty : 1 Year

Contact Now

3. 5km/h New Mini Crawler Dumper Transporter Rubber Track Dumper 500kg

Description of HT-D05 Mini Crawler Dumper:

The crawler transporter is a dump truck made of rubber crawler chassis or steel crawler chassis. manufacturer quality assurance, long service life, high efficiency.

Features of HT-D05 Mini Crawler Dumper:

1. wide range of use, simple structure, smooth transmission, labor-saving operation, easy to realize automatic control.

2. Single-cylinder power system, low fuel consumption. Large traction, good climbing grip performance, and strong transportation capacity.

Technical parameters of HT-D05Mini Crawler Dumper :

Model HT-D05
Length 1150
Width 648
Height 515
Capacity 0.2 m3
Angle of dumping 57%/47°
Angle from the ground 10°
Fuel Diesel
Rated power 6.8Kw
rotating speed 3000r/min
Cylinder 1
Motor Big torque motor
Double pump Gear pump
System pressure 16MPa
System flow 12ml/min
Hydraulic oil tank capacity 19.4L
Operating weight 600kg
Load capacity 500kg
Fuel tank 5.5L
Speed 3. 5km/h

It is especially suitable for short-distance transportation of various complex terrains such as mountains, paddy fields, deserts, and hills.

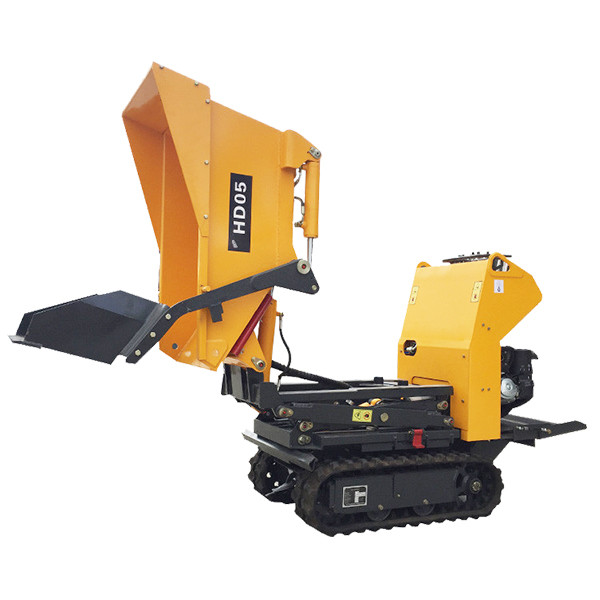

Images of HT-D05 Mini Crawler Dumper:

High Efficiency 3.5km/H Mini Crawler Carrier Crawler Mini Dumper 500kgHigh Efficiency 3.5km/H Mini Crawler Carrier Crawler Mini Dumper 500kg
